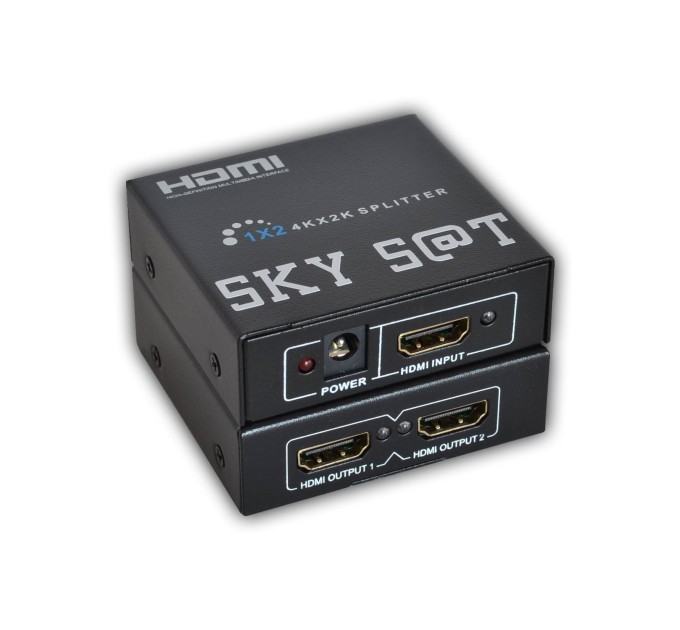

Twin active HDMI splitter SKY SAT PL-1X2 SP

   SKY SAT PL-1X2 SP is an HDMI splitter that features one HDMI input and two HDMI outputs that can power two HDMI compatible TVs or video projectors.
A splitter can also be placed at the end of a long HDMI cable to regenerate (amplify) the HDMI signal.
It can also be used in cascade systems powering more than two TVs or video projectors.

KIT INCLUDES:

• HDMI splitter 1X2- 1 pc.
• Power adapter 100-240V / 5V, 2A - 1 pc.

DESCRIPTION:

• High quality ACTIVE HDMI splitter.
• Possibility to connect an HDTV satellite receiver (or other) to 2 TVs/video projectors.
• Capable of cascading to build larger systems.
• One HDMI input and two HDMI outputs.
• Easy to use.
• Installs in seconds.
• It needs a DC 5V/1A power supply which is included in the kit.
• It doesn't need any special settings.
• Supports HDMI 1.4V.
• Supports UHDTV.
• Supports 4K X 2K (3840 X 2160/30Hz) resolution.
• Supports 3D.
• Supports CEC.
• Supports deep color 30 bit, 36 bit.
• Supports Blue-Ray 24/fs, 50/fs, 60/fs, HD-DVD, xvYCC.
• Supports digital audio formats such as DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD.

MAIN CHARACTERISTICS:

• Video resolutions support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p / 24fs, 50fs, 60fs.
• Video color support: 24 bit, 30 bit, 36 bit (deep color).
• Audio format support: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD (max. bandwidth 340 MHz).
• Maximum baud rate: 10.2 Gbps.
• Input/output TMDS signal: 0.5~1.5 Volts p-p (TTL).
• Input/output DDC signal: 5 Volts p-r (TTL)
• Maximum input cable length: up to 15 m (AWG 26 HDMI standard cable).
• Maximum output cable length: up to 20 m (AWG 26 HDMI standard cable).

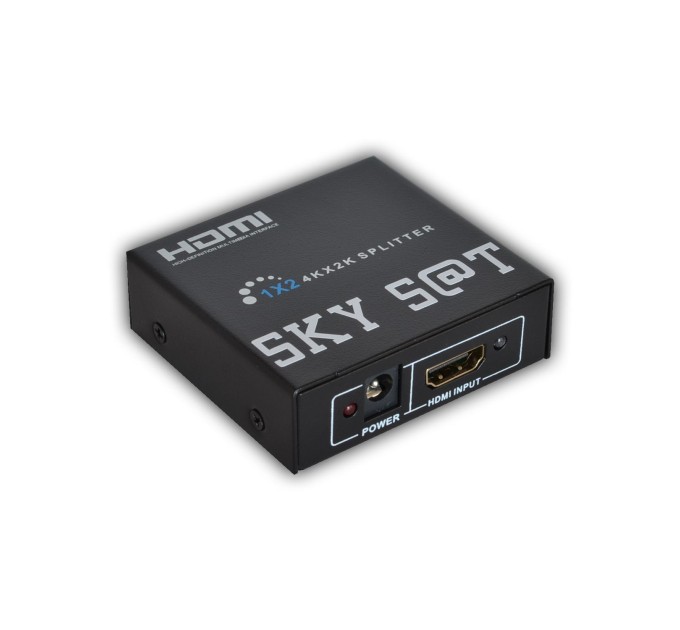

FRONT PANEL:

• 1 HDMI input.
• 2 LED indicators.
• 1 input for the power adapter.

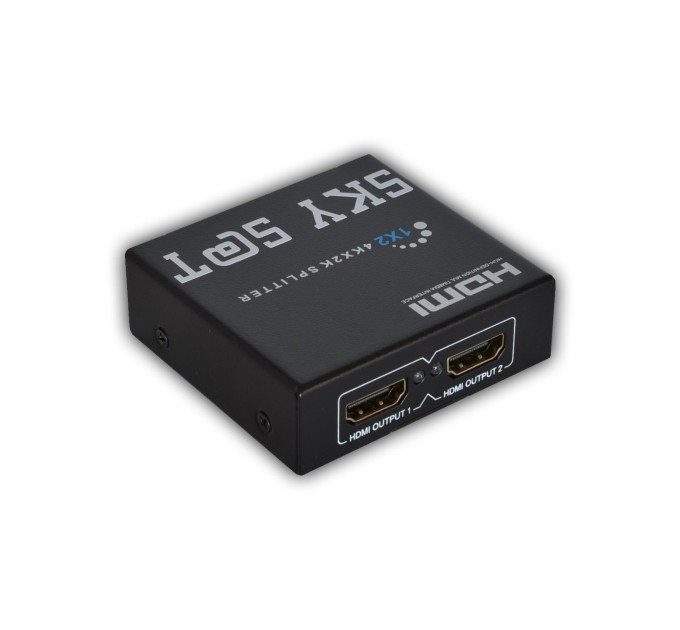

REAR PANEL:

• 2 HDMI outputs.
• 2 LED indicators.

POWER SUPPLY:

• Power supply type: external/adapter.
• Input voltage: AC 110~240V / 50~60 Hz.
• Output voltage: DC 5 V/1 A.
• Maximum consumption: below 500 mA.

PHYSICAL CHARACTERISTICS:

• Operation at temperature: -15°C~+55°C.

• Storage temperature: -20°C~+70°C.
• Size (L x W x H): 70mm X 60mm X 20mm.
• Weight: 0.105 Kg.
• Warranty: 2 years.
