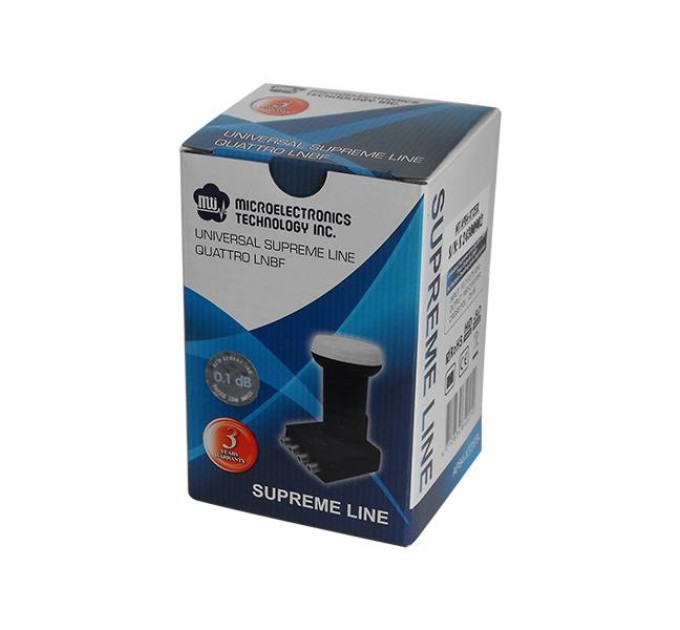

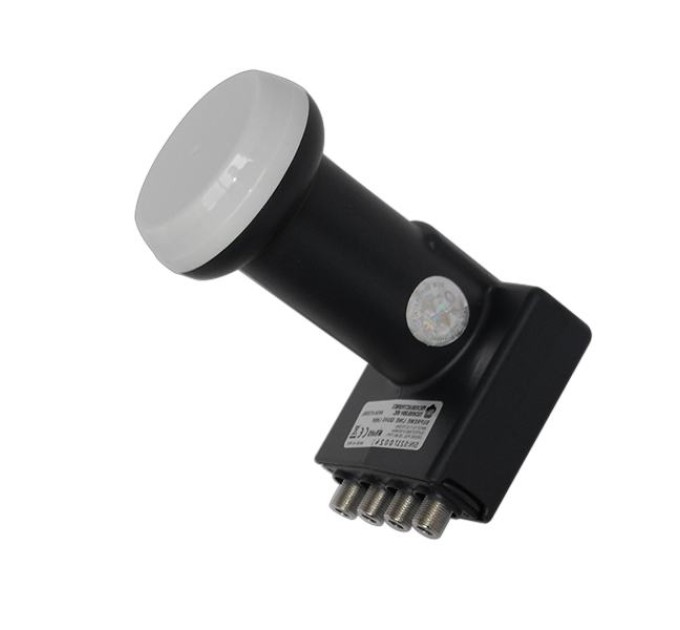

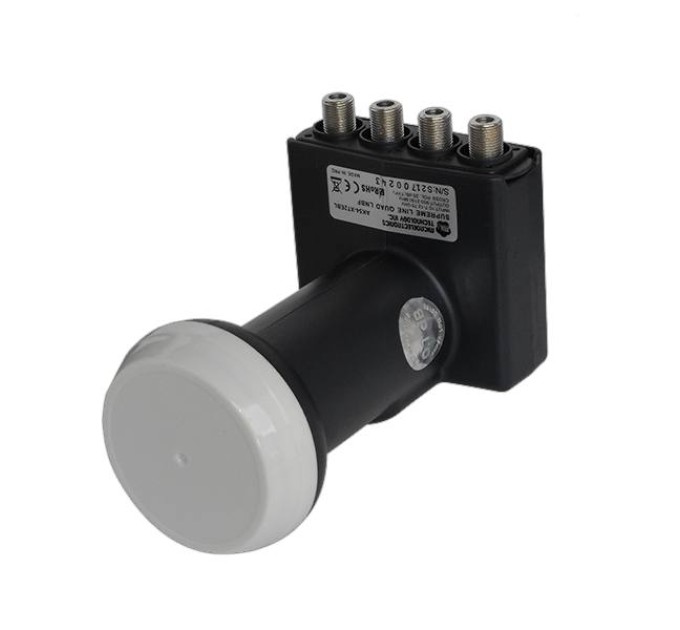

Converter with 4 outputs for multiswitch MTI AP84-XT2EBL QUATTRO

   MTI AP84-XT2EBL QUATTRO is a high-end quad satellite converter box designed to work with a multiswitch.

   This converter is specially designed and selected to meet the demand of the global DTH market for competitive and 4G / LTE secure converters. With the latest chipset technologies and modern design, it offers optimized reception options. Perfect for receiving HD and UHD programs. Unique RF characteristics such as very low power consumption and optimal suppression of interference from 4G / LTE transmitters. Developed and manufactured to the highest quality standards in the industry to meet the most stringent customer requirements.

DESCRIPTION:

• A high-end converter with four multiswitch outputs.
• Low phase noise.
• Perfect for SDTV, HDTV and 3D reception.
• Recommended for motorized and stationary antennas receiving very weak signals.
• Protective cap for the cable.
• Big boost.
• Mounting: 40 mm holder.
• Very low noise figure.
• Very low consumption.
• Good insulation in terms of polarizations.
• High stability of loc. oscillator.
• Input frequency: 10.700 - 12.750 GHz.
• Output frequency: 950 - 2150 MHz.
• Noise: 0.1 dB typical.
• Gain : 65 dB (typical) 60~70 dB.
• Consumption 170 mA (11~20 V).
• Operation at temperature: -40°C ~ +60°C.
• Weight: 0.280 Kg.
• Warranty: 2 years.
