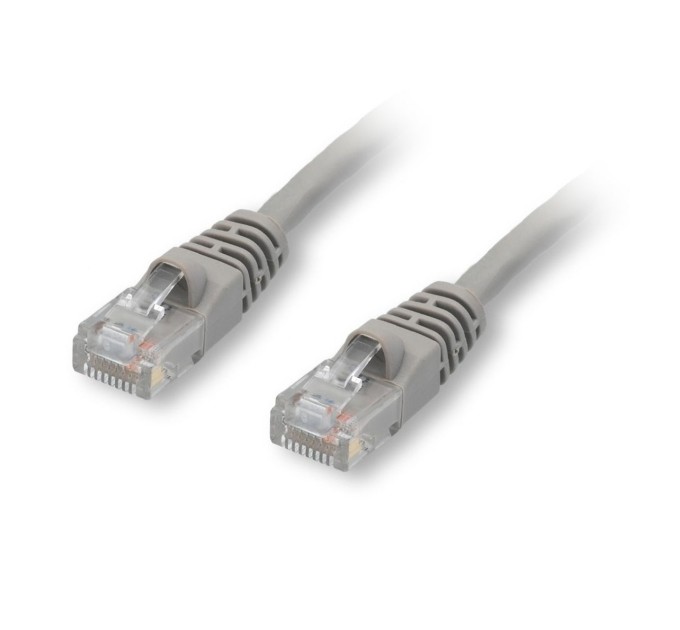

LAN connecting (patch) cable SKY SAT LPC-20 2.0 m

SKY SAT LPC-20 2.0 m is a Cat5e LAN patch cable with a length of 2 meter. It is intended to connect various electronic devices such as switches, computers, routers, satellite, air, cable or IPTV receivers.
This cable has a bandwidth of up to 100 MHz and a maximum speed of up to 1 Gbit/s. In terms of data transfer parameters, this is the most commonly used twisted pair in computer projects.

DESCRIPTION:

• Category: 5e.
• Class: D (100MHz).
• Maximum speed: 1 Gbit/s.
• Insulation: polyethylene.
• Fire Euroclass: Fca.
• Grey color.
• Length: 2 m.

ELECTRICAL PROPERTIES AT 20ºC:

• DC wire resistance: ≤ 95 Ω /km.
• Resistance to change: ≤ 2%.
• Insulation resistance (500V): ≥ 5000 MΩ *km.
• Mutual capacitance at 800 Hz: nom. 48 nF/km.
• Passive resistance of changing capacitance: ≤ 1500 pF/km.
• Characteristic impedance (1-100MHz): (100 ± 15) Ω.
• Nominal Velocity of Spread (NVP): 69%.
• Delay Distribution Nominal: ≤ 535 ns/100m.
• Angular spread Nominal: ≤ 20 ns/100m.

PHYSICAL CHARACTERISTICS:

• Bending radius: 4 x overall diameter.
• Max. pulling force: 80 N.
• Size (W x H x D): 100mm X 100mm X 30mm.
• Weight: 0.150 Kg.
• Temperature range: operation -30°C to +50°C
• Temperature range: installation 0°C to + 50°C
• Warranty: 2 years.
