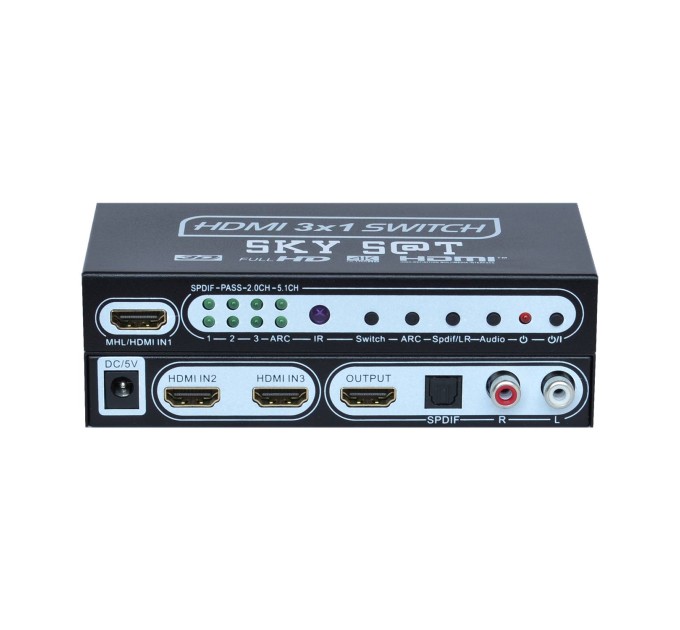

Triple active HDMI switch SKY SAT PL-3X1 SW

   SKY SAT PL-3X1 SW is an HDMI switch that has three HDMI inputs and one HDMI output. It is designed to connect three sources with HDMI output to one HDMI compatible TV or video projector.
The switch can also be placed at the end of a long HDMI cable to regenerate (amplify) the HDMI signal.

KIT INCLUDES:

• HDMI switch 3X1- 1 pc.
• Power adapter - 1 pc.
• Remote control - 1 pc.
• MHL/HDMI cable - 1 pc.
• Operating manual in Bulgarian - 1 pc.

DESCRIPTION:

• High quality ACTIVE HDMI dongle.
• Ability to connect several HDTV satellite receivers (or other) to 1 TV/video projector.
• Three HDMI inputs and one HDMI output.
• Easy to use.
• Installs in seconds.
• It needs a DC 5V/1A power supply which is included in the kit.
• It doesn't need any special settings.
• Supports HDMI 1.4A.
• Supports UHDTV.
• Supports 4K X 2K (3840 X 2160/30Hz) resolution.
• Supports 3D.
• Supports CEC.
• Supports HDCP 1.3.
• Supports MHL 2.0.
• Supports deep color 30 bit, 36 bit.
• Supports Blue-Ray 24/fs, 50/fs, 60/fs, HD-DVD, xvYCC.
• Supports digital audio formats such as DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD.

MAIN CHARACTERISTICS:

• Video resolutions support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p / 24fs, 50fs, 60fs.
• Video color support: 24 bit, 30 bit, 36 bit (deep color).
• Audio format support: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD (max. bandwidth 300 MHz).
• Maximum baud rate: 9.95 Gbps.
• Input/output TMDS signal: 0.5~1.5 Volts p-p (TTL).
• Input/output DDC signal: 5 Volts p-r (TTL)
• Maximum input cable length: up to 15 m (AWG 26 HDMI standard cable).
• Maximum output cable length: up to 20 m (AWG 26 HDMI standard cable).

FRONT PANEL:

• 1 MHL/HDMI input.
• 9 LED indicators.
• 1 IR sensor for remote control.
• 5 control buttons.

REAR PANEL:

• 2 HDMI inputs.
• 1 HDMI output.
• 1 input for the power adapter.
• 1 SPDIF (optical) audio output.
• 2 RCA (analog) audio outputs

POWER SUPPLY:

• Power supply type: external/adapter.
• Input voltage: AC 110~240V / 50~60 Hz.
• Output voltage: DC 5 V/1 A.
• Maximum consumption: below 500 mA.

PHYSICAL CHARACTERISTICS:

• Operation at temperature: -15°C~+55°C.
• Storage temperature: -20°C~+70°C.
• Size (L x W x H): 140mm X 70mm X 25mm.
• Weight: 0.215 Kg.
• Warranty: 2 years.
